Warning sign

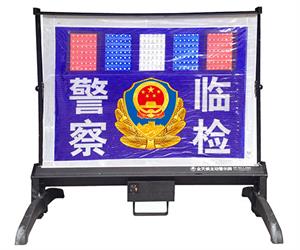

Technical parameters outline size: Close Up: 780 * 380 * 12mm (length * Width * Height) horizontally expand: 780 * 380 * 1350mm (length * Width * Height) vertical ground (including warning lamp height) sign text content: Police Inspection, traffic control, in front accident, prohibition overtaking reflection light night vision distance: ≥260M ANTI-WIND PERFORMANCE: reflection, matrix perforated wind-proof design, temporary inspection warning sign can be placed in place to resist 17m/s class gale. Warning lamp water proof grade: Ip 65 weight: 10kg (including warning lamp weight)，External Auxiliary Warning Lamp: Length 315mm x width 80mm x thickness 45mm material: Aluminum Profile Lamp holder + polycarbonate lamp cover + 0.5 w LED lamp beads 12, Built-in rechargeable 4000mA lithium battery power: 2.4 W, continuous working time: More than 50 hours; Weight: 1.0 kg warning distance: The visual distance can reach over 400 meters at 120 kph.

Features: The outer frame is made of high strength steel, which is not easy to deform and aging, and is firm and durable; the guide plate is made of thick aluminum plate and national standard reflective film, which has good warning effect; the two guide plates are individual and can be turned over freely and disassembled quickly; Combination diversification, meet the requirements of Early Warning; product placement is stable, wind-proof design; use high-quality National Standard Reflective film, clear warning guidance content, driving speed of 120 km/h in the visible distance up to 260 meters; product combination is convenient, compact and light, the utility model can be easily put into the patrol car and the trunk of the reconnaissance car, and can be quickly arranged and collected to meet the requirements of quick warning.

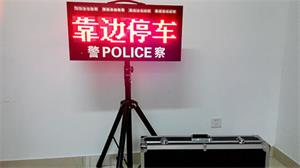

Screen Size: 690 * 340 * 60mm weight: 9.0 kg ± 0.5 kg power supply: 1) internal high quality 18650 Lithium Battery Pack 2) external AC 220V TO DC 12V city power supply 3) DC 12V TO DC 5V vehicle power supply，Current: 1.5 a/max working temperature:-10 °C-+ 60 °C charging time: 8-10 hours working time: More than 15 hours screen body fixing mode: adjustable tripod support, with its own horizontal locking device, to ensure that the support screen device wind protection, do not swing around the need to be equipped with a charger, can be used for vehicle and 220V city charging

Warning Lamp Parameters: 1) primary color: Red And blue 2) light source: High Power High Brightness LED strobe 3) Life: ≥100,000 hours 4) warning lamp sight distance: ≥1000 meters

Led module technical parameters: module size (mm) : 640 * 160 Pixel spacing (mm) : 10 mm Pixel Density (point/square meter) : 1000 PIXEL COMPOSITION: 1R Module Resolution: 32 * 16 Maximum Power (w/square meter) : 700 average power (W/square meter) : 200-300，Brightness (cd/m2) : ≥3500 refresh frequency: 480HZ IP protection level: IP65 angle of view: Best Angle Level 90-130 degrees, elevation 30-45 degrees, down Angle 10-20 degree LED display display display display distance: 200-350 meters display module brightness uniformity: < 5% text input mode: U Disk input (can change words according to their needs) storage content: 200 messages (each message can display 4 words) display effect: left shift, right shift, up shift, static equal brightness adjustment: 16 level adjustable remote control function: On/off the screen, switch the text information remote control distance: ≥10 meters

With manual control function pixel out of control rate: < 1/100000(industry standard: < 1/10000) mean trouble free working time: > 10000 hours, service life: > 100000 hours, service environment temperature:-10 °C ~ + 60 °C service environment humidity: 10% ~ 90%
Tripod parameters: Material: steel pipe surface black spraying anti-rust treatment + sticking red and white reflective film steel pipe parameters: main pipe diameter 34 mm, wall thickness ≥1.5 mm; main pipe diameter 38 mm, wall thickness ≥1.2 mm, bottom supporting pipe diameter 35 mm, wall thickness ≥2.0 mm support mode: The tripod is equipped with a transverse locking device to ensure that the supporting screen device is wind-proof, non-sway rotation minimum contraction height: 84 mm ± 10 mm maximum elongation height: 1560 mm ± 10 mm maximum open angle size: 100 mm ± 10 mm weight: 5.5 kg ± 0.5 kg carrying mode: SHOULDER-BACK WATERPROOF NYLON COVER

Package Size: 730mm × 410mm × 150mm ± 10mm material: Aluminum Alloy box weight: 5.5 kg ± 0.5 kg

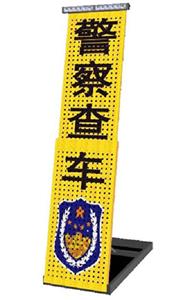

Technical Specification: 100CM * 100CM SCAFFOLD WIDTH: 90CM POCKET SPECIFICATION: 100 * 25 * 16CM Dry Battery: 12V/2200MA * 10LED: 100,000 hours, red, blue and white three-color visible distance: 500-600M storage time: Battery continuous work more than 240H charging mode: car-mounted cigarette lighter charge, city charge reflective material: PVC Lattice, high-brightness LED performance: LED active warning, foldable, easy to carry, adverse weather warning effect prominent, visual distance 400-1000 meters.

Colors and styles can be customized
