thermography
thermography
CCD: 13′′ Sony CCD magnification: 8 X objective Lens Aperture: 60 mm observation distance: 700 m daytime and 400 m night infrared operating distance: 80-100(m) field of view angle: 13 degrees waterproof: water-proof for life day and night dual use: is the product weight: 400 G Outline Size: 260 × 100 × 65(mm) working voltage: 33.0 v (CR123A) memory card: maximum support 16 GB features: High Sensitivity photosensitive elements; Brightness Adjustable; built-in infrared lighting; compact, lightweight design ergonomic design, easy to operate; waterproof, anti-fog living.

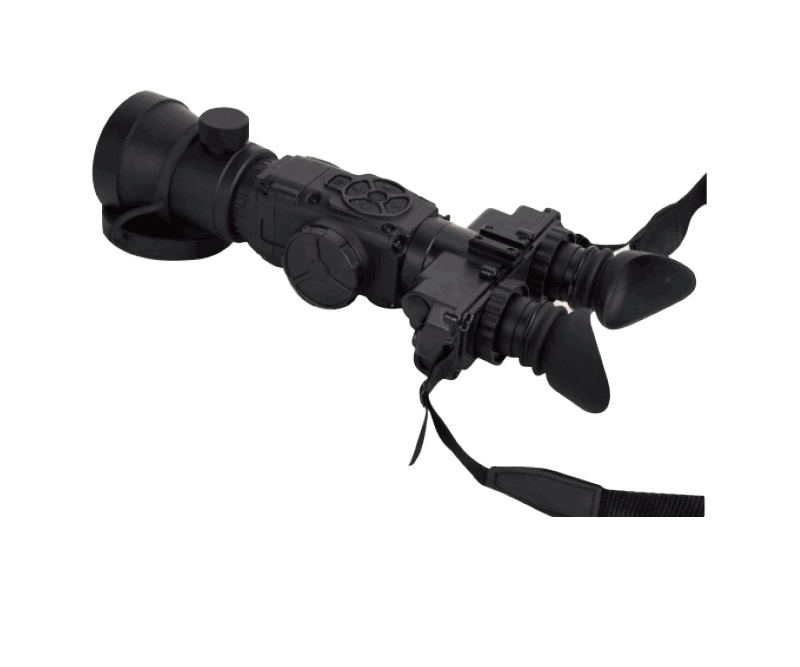

Binocular thermal imager
This product can work day and night, and has the ability to penetrate fog, smoke and dust particles, can be completed at night search, reconnaissance and other tasks. Magnification: 4 Digital Zoom: 8-16 WAVELENGTH RANGE: 7 ~ 14um angle of view (HXV) : 8.3 x 6.2 exit pupil distance: 52mm exit pupil diameter: 6mm thermal sensitivity: ≤50mk (@25 °C) detection distance: > 1800m, human (1.8 m × 0.5 m) > 1900m (2.3 m × 2.3 m) recognition distance: > 460m, man (1.8 m × 0.5 m) > 500m (2.3 m × 2.3 m) Working Hours: 8 HOURS FRAME FREQUENCY: 50HZ NON-UNIFORMITY CORRECTION: Image Polarity: Black Heat/white Heat/brown/iron red/green/fluorescent color operating temperature:-40 °C ~ 50 °C 32. Weight: 1.3 kg cross partition board: Adjustable binocular distance: IP65

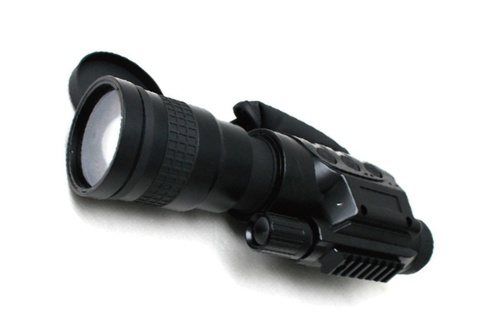

Monocular thermal imager
Product Introduction: Fully Integrated Detector Type: UNCOOLED Focal Plane Pixel: 384 * 288 Field of view: 21.7 ° × 16.4 ° objective aperture: 25 mm focal length: 25 mm noise equivalent temperature: 80 mk@30 °C FOCUS: fixed focal length electronic magnification: 2X, 3X, 4x wavelength range: 8-14μm image transmission: Wifi real-time image transmission, support for Mobile APP, image viewing, photography, video function hot tracking: Cross cursor tracking scene in the highest temperature point display: Color Lcd: 640 * 480(eyepiece visibility adjustable) image polarity: Black Hot, White Hot, red hot batteries: Lithium batteries, it can work continuously for 5 hours and supports USB charging. It can be used for external charging. Working temperature:-20 °C ~ 50 °C, storage temperature:-40 °C ~ 60 °C protection grade: IP66 WEIGHT: & Lt; 0.5 Kg Size: & Lt; 190 × 70 × 70(mm) human detection distance (m) : 550, vehicle Detection Distance (m) : 750 Person Identification Distance (m) : 270, Vehicle Identification Distance (m) : 380
Colors and styles can be customized
