Portable UAV interceptor system

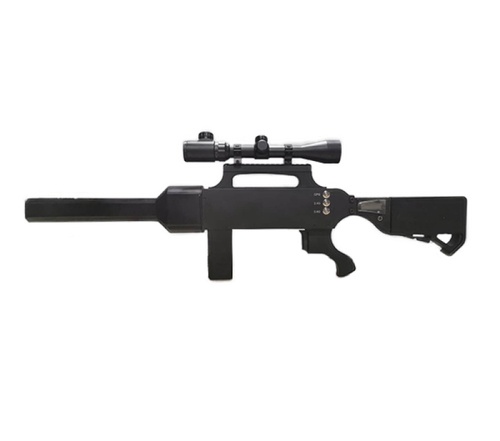

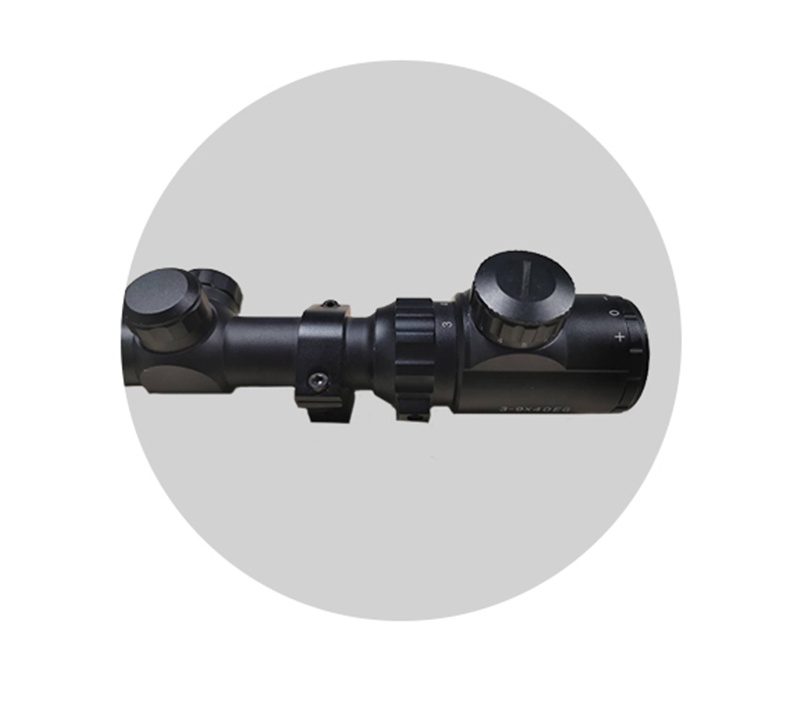

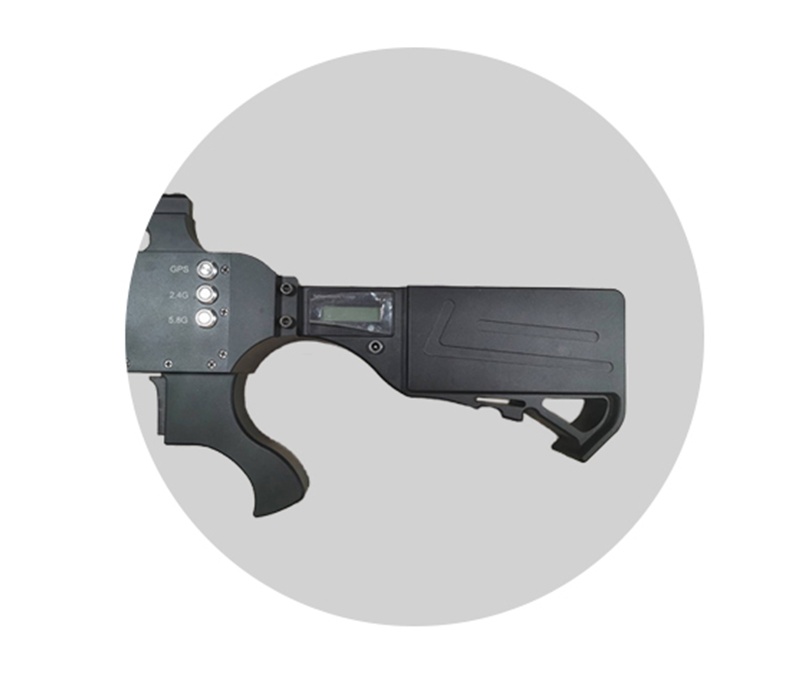

Technical Parameter 1, appearance: The Intercepting System of the portable UAV is composed of the host computer and charger, the host computer is a portable structure, on which there is a guide rail suitable for installing sighting telescope, lighting lamp, infrared equipment and so on. The equipment main engine can interfere the radio control link/GPS link of UAV by producing electronic interference signal of different frequency, and it is powered by DC12V. 2. Weight: Product Weight 3500g; Charger Weight 501G. 3. Size: Host Size: length 906 * Width 200 * Height 233mm; Charger Size: length 180 * Width 90 * Height 50mm. 4, Shell Protection capacity: IP55 Technical Parameters 1, appearance: portable UAV interception system by the host and charger, the host for the portable structure, its design is suitable for the installation of sighting telescope, lighting, infrared and other peripheral equipment rail. The equipment main engine can interfere the radio control link/GPS link of UAV by producing electronic interference signal of different frequency, and it is powered by DC12V. 2. Weight: Product Weight 3500g; Charger Weight 501G. 3. Size: Host Size: length 906 * Width 200 * Height 233mm; charger size: length 180 * Width 90 * Height 50mm. 4. Case protection: IP55。5. Transmit Coverage Frequency: Channel 1: (0.8241 ~ 0.9410) Ghz; Channel 2: (1.1404 ~ 1.3063) Ghz; Channel 3: (1.5532 ~ 1.5850) Ghz; Channel 4: (2.3911 ~ 2.5033) Ghz; Channel 5: (5.6933 ~ 5.8370) Ghz;6. Channel Output Power: Channel 1:40.88DBM channel 2,3:40.93dBm channel 4:40.29dBm Channel 5:39.93DBM。7. UAV Jamming Performance: The portable UAV interceptor system can jam the UAV which uses (1.2276 ± 0.1000) Ghz frequency GPS signal to realize positioning, (2.4000 ± 0.1000) GHz frequency remote control signal to control, and (5.8000 ± 0.1000) GHz frequency signal to transmit. In the experiment, the frequency of GPS signal is 1.2776Ghz, the frequency of remote control signal is 2.4000Ghz, the frequency of picture transmission signal is 5.8000Ghz, the distance between remote controller and UAV is 206m, the distance between interceptor and UAV is 1001m } : when the interceptor system of the portable UAV is set to the forced landing gear, and aiming at the jamming of the UAV’s starting frequency, the remote controller of the UAV shows no picture transmission, and the UAV lands in the same place after hovering briefly. When the portable uavs interceptor system is set to return gear and is aimed at the uavs’start frequency interference, the uavs’hand-held remote control shows that the uavs have lost control and returned to the vicinity of the take-off point.)8, product description: this product is mainly through the launch of high-power electromagnetic waves, the state of flight control of drones, remotely cut off the relationship between drones and remote control. By intercepting the host of the UAV system, the UAV can land in situ or return to the starting point of the functional management and control, to ensure the security of low-altitude airspace in the region. Eight.-one. COMPONENTS: Interception System, charging power supply; 8-2. Portable Design: Imitation light weapon design, can shoot with one hand or two hands; 8-3. Control Mode: land in place or return to take-off point; 8-4. Effective Control Distance: 0 M ~ 1000 m (covering the whole low altitude open area) ; 8-5. UAV landing precision less than 5 meters, to ensure that the UAV landing yaw caused by the security risks; 8-6. MULTI-BAND ELECTROMAGNETIC LAUNCH: Can Control a variety of uavs produced in different countries, such as: domestic, Japanese, American, European Union Civil, commercial and aerial photo uavs; 8-7. BUILT-IN HIGH-CAPACITY LITHIUM BATTERY: can be used in any place, lithium battery for 60 minutes of continuous operation of the device; 8-8. Simple operation: a key switch, landing, return two free choice of mode; 8-9. APPEARANCE: Light weapons appearance design, effective deterrent to the target suspect; 8-10. With Guide Rail, can carry sight, lighting, infrared laser, thermal imaging, night vision and other equipment to improve performance.9, performance indicators: 9-1 UAV EFFECTIVE CONTROL DISTANCE: 0 M ~ 1000 m (covering the whole low-altitude open area) ; 9-2 Return Landing Accuracy: ≤5 m; 9-3 built-in high-capacity Lithium Battery: Working Time 60 Minutes; 9-4 Portable Operation: single-hand or two-hand shooting; 9-5 control mode: one-button switch function key to enable the UAV to land in situ or return to the starting point; 9-6 multi-band electromagnetic launch: can control all kinds of uavs, such as: Domestic, Japan, the United States, the European Union produced civil, commercial and Aerial UAV; 9-7 host structure: high strength ABS material, reduce the weight of equipment; 9-8 trigger life: More than 100,000 times; 9-9 use environment temperature:-25 °C/+ 50 °c; 9-10 ambient humidity: IP65(Rain Proof) ;Application: 10-1, the protection of no-fly zones within the country, such as: prisons, military management areas, national strategic resources projects, nuclear industrial facilities, airports, political and other areas; 10-2, to prevent information leakage site, such as: the scene of major criminal cases, the scene of urban management law enforcement, important security sites, the protection of dignitaries, large-scale rehearsals of performances, archaeological excavation sites, large-scale group events site; 10-3. Combating the use of drones as a vehicle for illicit activities such as drug trafficking, smuggling, illicit items or the transmission of information.Application: 10-1, the protection of no-fly zones within the country, such as: prisons, military management areas, national strategic resources projects, nuclear industrial facilities, airports, political and other areas; 10-2, to prevent information leakage site, such as: the scene of major criminal cases, the scene of urban management law enforcement, important security sites, the protection of dignitaries, large-scale rehearsals of performances, archaeological excavation sites, large-scale group events site; 10-3. Combating the use of drones as a vehicle for illicit activities such as drug trafficking, smuggling, illicit items or the transmission of information.For targets: Unmanned Aerial Vehicles flying below 1,000 meters at low altitudes. 12. Implementation Standards: In compliance with GB 16796-2009 safety precautions and alarm equipment, safety requirements and test methods, q/RD001-2016 portable unmanned aerial vehicle interception system (enterprise standard) , i provide the company after August 2016 national security alert system product Quality Supervision and Inspection Center (Beijing) security and Police Electronic Products Quality Inspection Center issued by the Ministry of Public Security Test Report.Technology and materials: The intercepting system of the portable UAV is composed of a host computer and a charger. The host computer is a portable structure. The equipment main engine can interfere the radio control link/GPS link of UAV by producing electronic interference signal of different frequency, and it is powered by DC12V.

Portable type

Technical Parameters 1, composition: host, triangular support, the scope of three parts, including the support and the scope for optional accessories; 2. Portable design: it can be carried over the shoulder, carried in hand, or mounted on a tripod to hold two modes of control: a forced landing or forced return (for the purpose of capturing the Remotely Piloted Vehicle) ; and a controlled drone, it will not be able to transmit video, aerial photos and receive any instructions from the remote controller on the ground. 3. Effective control distance: 0-1000 meters (covering the whole low-altitude Open area) ; 4, multi-band electromagnetic launch: can control a variety of uavs produced in different countries, such as: domestic, Japanese, American, European Union Civil, commercial and aerial photo uavs; 5. Camouflage appearance: The Appearance Of a non-offensive weapons style (camera style) , can shoot down the drone with minimal attention, and the operator will not be exposed; 6, built-in high-capacity Lithium battery: can be used in any place, the lithium battery can work for 120 minutes; 7, the operation is simple: one key switch machine, landing, return two modes free choice; 8. White light rifle sight with homemade type 885.8 mm sniper rifle: observe, aim and approximate range for a single target UAV within 1,000 meters.Mainly used in: 1, the protection of no-fly zones, such as: prisons, military management areas, national strategic resources projects, nuclear industrial facilities, airports, political and other areas; 2, to prevent information leakage site, such as: The scene of major criminal cases, the scene of urban management law enforcement, important security sites, the protection of dignitaries, large-scale rehearsals of performances, archaeological excavation sites, large-scale group events site; 3. Combat the use of drones as vehicles for illegal activities, such as drug trafficking, smuggling, illicit goods or information transfer.Technology and materials: 1, aimed at the target: Unmanned Aerial Vehicles Flying Below 1000 meters 2, this product is mainly to control the unmanned aerial vehicles in flight, remote cut off the link between the unmanned aerial vehicle and the remote controller, through the unmanned aerial vehicle, the UAV can be forced to land or forced to return, to ensure the security of the airspace within the region.

Vehicle mounted type：Technical Parameters 1, rotation speed: level 0.01 ~ 20 degrees/s, pitch 0.01 ~ 10 degrees/s 2, Rotation Angle: Level 0 ~ 360 degrees continuous rotation; Pitch + 70 ~ + 150 °C (vertical down to zero)3, POSITIONING ACCURACY: + 0.1 °C 4, repeatability: + 0.1 °C 5, input power supply: AC220V + 20% , 50/60Hz6, working temperature:-25 °C ~ + 55 °C 7, storage temperature:-40 °C ~ + 65 °C 8, POWER CONSUMPTION: & Lt; Communication Interface: MAX23210, Communication Baud Rate: 115200bps11, Communication Protocol: According to the protocol equipped with the equipment 12, the whole machine weight: 32KG13, Contour Size: 605MM * 360MM * 543MM (l × W × H)
APPLICATIONS: 1. Defense of key areas, such as: Large Conference venues, important security sites, protection of dignitaries, prisons, military management areas, national strategic resources projects, nuclear industrial facilities, airports, political and other areas; 2. Prevent the scene of information leakage, such as: The scene of a major criminal case, the scene of urban management law enforcement, the rehearsal of a large-scale performance, the scene of an archaeological excavation, the scene of a large-scale mass event, etc.  3. Crack down on the use of drones as a vehicle for illegal and terrorist activities, such as: personal/family privacy, messaging, drug trafficking, smuggling, terrorists transporting dangerous goods, etc.

Key Features: 1, UAV Effective Control Distance: 0 m-2000 m (covering the entire low-altitude open area) , 2,220V AC power supply: applicable to any can provide electricity field, quick start; Vehicle-mounted mobile design (vehicle-mounted) : the device weighs 32 kg and can be mounted on any vehicle with sufficient space and load. 4. Control Mode: forced landing or forced return of the UAV (capture of the remote controller) , it can select the channel corresponding to the target type by computer control command, open all the channels at the same time, or close a channel, etc.  5. Precise positioning: The device is mounted on the vehicle without moving the vehicle until the target direction is determined, the computer-controlled device is used to intercept the vehicle in 360 degrees horizontal and 60 degrees elevation and 20 degrees pitch (with an accuracy of 0.1 degrees) . 6. Flexibility Design: Main Lobe Beam Width 50-120 degrees (3DB) . In the beam width range, the device can be moved, the device is controlled by a computer, when the device moves, just need to control the angle of the pan at any time, to ensure that the target is within the beam range, you can make sure to intercept the target while you’re moving. Multi band electromagnetic launch: can control all kinds of uavs, such as domestic, Japanese, American and European Union civil, commercial and aerial photo uavs.

Frequency Range: 1. VEHICLE-MOUNTED UAS JAMMING INTERCEPTOR: 415MHz-5800MHz full-band Coverage: includes all possible remote control and navigation frequencies for uas, suitable for secure, fixed area or low-altitude Defense of the venue. Sentence is too long, please supply a shorter sentence. Beam width: Main Lobe Beam Width 50-120 degrees (3DB) . 3. Emission Power: average emission power ≥150 watts. 4. Size and weight: Main engine weight: 32KG (about) ; main engine size: 605MM * 360mm * 543MM (l × W × H). This product is to control the target of the unmanned aerial vehicle (UAV) in the low-altitude flying state below 0-2000 meters, cut off the communication between the UAV and the remote controller from a long distance, through the UAV jamming interceptor, can carry on the forced landing or forced return of the UAV, ensure the safety of the airspace within the no-fly zone.

Colors and styles can be customized
