Intelligent electronic foot buckle system

Product Features 1, real-time positioning: Danger Alarm activated 3-5 meters high-precision positioning, BEIDOU/GPS/LBS/Wifi four-fold positioning system. 2, real-time alarm: Danger Alarm Electronic Foot buckle and hand-held Terminal over-distance alarm unauthorized open electronic foot buckle wrist strap alarm cut alarm beyond the electronic fence alarm warning warning warning warning warning warning power is insufficient alarm (less than 30%)60 s did not receive electronic foot buckle position information alarm vital signs abnormal alarm electronic foot buckle blow damage alarm

Technical parameter

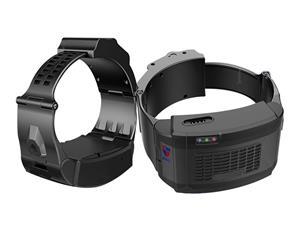

Electronic Foot Buckle 1, communication frequency band: GSM850/900/1800/19002, duration: Working Time: 272 Hours 3, alarm sound level: electronic foot buckle alarm sound pressure 286 DB (a)4, battery capacity: built-in Battery 3500mAh5, unlock and wrist band: Magnetic Mechanical Lock, the metal wristband can be adjusted in many levels 6, size: 96mm × 58mm × 99mm 7, ALARM MODE: Danger Alarm 4, prompt alarm 48, embedded module: GSM/GPRS, GPS/BDS, Wifi, UWB9, protection grade: IP5710, material: High wrinkle alloy, main engine anti-static pull force 21000N11, charging mode: 4pin standard magnetic charging 12, Xibo Pin: Electronic Pin pin reserved with an external interface, can be external pin pin pin 13, weight: Electronic Pin Pin pin less than 500g host

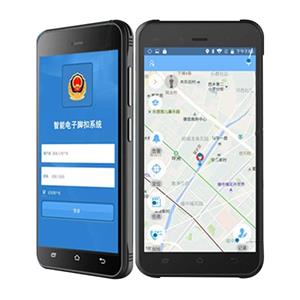

Handheld Terminal 1, Network: Support 4G ALL NETCOM 2, Display Size: 5.0 Inches 3, display resolution: 1920 × 10804, operating system: Android 7.0 smart operating system 5, CPU: Eight core 2.0 Ghz 6, memory: 3 GB + 32 GB7, camera: Front 8 million Pixels, rear 16 Megapixel 8, battery: 5000mAh9, Battery Life: 272 hours after mission start time 10, data lines and interfaces: Type C data interface 11, Intercom: Public Network Voice Intercom 12, protection level: IP67

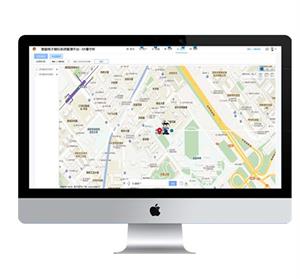

Supervisory Platform 1, System Architecture: Java ee b/s architecture of the platform 2, platform features: High Security, scalability, portability, support for Multiple Platforms 3, Platform Mechanism: Balanced Computing, distributed caching 4, main technologies: Application clustering technology, data backup technology and service redundancy technology 5. Audit Mechanism: Adopt multi-audit mechanism, analyze data request, monitor and filter abnormal request and illegal access to ensure network security

Colors and styles can be customized
