Patrol droids

Parameter configuration and performance description: Appearance Size: 1370 * 750mm speed: 4-14km/H ENDURANCE: 8 HOURS SENSOR: Depth Vision Sensor, anti-drop sensor, anti-collision sensor, ultrasonic Sensor actuator: anti-riot electrodes rely on network: WIFI 4G walking mode: automatic/remote charging posts: Dimensions: Length: 588 * Width: 210 * Height: 362 The robot and its management system can provide autonomous patrols, safety precautions, handling in the event, interactive services four core functions, can be widely used in the airport, high-speed rail, subway, shopping malls, hotel lobbies, government affairs center, room and other occasions. Implementation Standard: Our company issued a product quality inspection certificate.

PROCESS FEATURES: Autonomous Patrol (1) map construction: USING LIDAR OR VISUAL SLAM technology to explore the operating area and build a map of the environment boundary for autonomous robot operation. (2) autonomous localization and navigation: In the course of patrol, the robot uses the encoder, IMU, Lidar and Vision Sensor to fuse real-time localization, and performs the task according to the established route and time. (3) autonomous obstacle avoidance: adopting the heuristic path search algorithm based on potential field map to select the safest path, and combining the sensing obstacles of Lidar, vision, ultrasonic and other sensors to avoid obstacles reasonably. (4). AUTO-CHARGING: When the power of the robot is below a certain threshold, it will automatically navigate to the preset charging post area to complete its power supply. Security Defense (1) video monitoring: The robot is equipped with four high-definition cameras to realize 360 degree body monitoring, and can use the robot management platform to view real-time and historical audio and video data through the network. (2) Environmental Monitoring: The robot can be equipped with sensors such as temperature, humidity and smoke to monitor the environment in real time and report to the robot management platform for real-time warning. (3) intelligent detection: The robot can real-time detect video images of people, pedestrians, dynamic targets, vehicles and other established targets, but also can be customized to carry other forensics or detection equipment, the detection target is uploaded to the robot management platform in real time through the network. (4) compare early warning: Robot Management Platform can be real-time upload according to the detection target real-time comparison. Such as real-time comparison of key personnel library portrait, real-time comparison of detection targets, and according to the results of identification early warning.Handling in the event (1) sound and light alarm: when the call button is triggered, the robot will issue a police sound and light alarm and simultaneously notify the robot platform manager. (2) remote call: Managers can realize remote audio and video call and interactive functions through remote control of robot management platform. (3) anti-riot deterrent: The robot can be equipped with anti-riot electric fork, Taser or strong light blinding equipment. The manager can remotely control the robot through the robot management platform to realize the functions of remote-control on discharge deterrent, anti-riot impact and so on. Interactive Service (1) autonomous Voice Service: The robot system integrates an intelligent brain and can provide voice-guided services based on speech and text interaction, such as chat, inquiry service, welcome speech and other human-computer interaction functions. (2) audio-video Intercom: In a certain situation, the robot can launch audio-video Intercom to the robot management platform, and the customer service can provide better interactive service and service guidance. (3) media and news item broadcast: The robot is equipped with multi-media display function, which can play related safety announcements, advertisements, important news items and so on during robot patrol. (4) business management: The robot system can customize various business services for different application scenarios, such as: Face authorization, identity input, business guidance, process management, etc. .

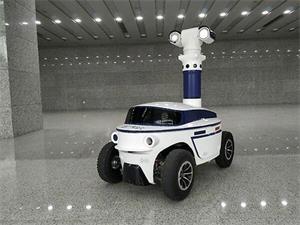

Parameter configuration and performance description: Appearance Size: 1150 * 780 * 1180mm speed: 5-18km/H Endurance: 8 hours sensor: LIDAR, Ir Ranging Sensor, Collision Detection Sensor, ultrasonic sensor actuator: acousto-optic alarm, anti-riot fork relies on network: WIFI 4G WALKING MODE: auto/remote charging post: Size: Length: 320 * Width: 135 * Height: 420(mm) the robot and its management system can be widely used in large-scale occasions such as communities, private parks, venues, administrative compounds, industrial parks, prisons, docks and so on. Implementation Standard: Our company issued a product quality inspection certificate.

PROCESS FEATURES: Autonomous Patrol (1) map construction using lidar or visual SLAM technology to explore the operating area and build autonomous robot map of the boundary of the environment. (2) the autonomous localization and navigation robot uses the encoder, the IMU, the laser radar and the vision sensor fusion real-time localization. (3) the heuristic path search algorithm based on potential field map is used to choose the safest path, and the sensor sensing obstacles such as Lidar, vision and ultrasonic are fused to avoid obstacles reasonably. (4) when the power of the auto-charging robot is below a certain threshold, it will automatically navigate to the preset position of the charging pile to complete its own power supply. Security Prevention (1) video monitoring: The robot is equipped with four high-definition cameras to realize 360 degree body monitoring, and can use the robot management platform to view real-time and historical audio and video data through the network. (2) intelligent detection: The robot can real-time detect the video images of people, pedestrians, dynamic targets, vehicles and other established targets, real-time through the network to detect the target uploaded to the robot management platform. (3) Environmental monitoring: The robot can be equipped with sensors such as temperature, humidity and smoke to monitor real-time environmental information in its operating environment and report to the robot management platform for real-time warning.Handling in the event (1) sound and light alarm: The robot is equipped with a one-button call button. When the call is triggered, the robot will issue a police sound and light alarm and simultaneously inform the robot platform manager; At the same time, the sound and light alarm can also be remotely triggered by the robot management platform. Remote call in case of emergency, the manager can realize the function of remote video and audio call and interaction through the remote control robot management platform to improve the efficiency of early warning response. (2) anti-riot deterrent: The robot can optionally be equipped with anti-riot electric fork, electric shock gun or strong light blinding equipment. The manager can remotely control the robot through the robot management platform to realize the functions of remote control, starting the discharge deterrent, anti-riot and anti-collision, etc. , effective deterrence, containment. Interactive Service: (1) the term broadcast robot can play some important terms such as security, advertisement and so on during patrol.

Colors and styles can be customized
