Multi-rotor unmanned aerial vehicle

Parameter configuration and performance description:Maximum profile size: 700mm × 700mm × 240mm folding size: 400mm × 400mm × 240mm weight (including battery) : 3900G TAKE-OFF WEIGHT: 7200G maximum load: 3300G flight time: 45Min Wind Resistance: 6 Class Diagram Transmission, data transmission distance: 10km maximum range: 23km flight height: 1000m maximum service altitude: 5000m maximum horizontal velocity: 73km/h Rain Protection Grade: Heavy rain working temperature:-20 °C to 55 °c route planning: Autonomous FlightHovering Noise 30m above ground: ≤60DB PERFORMANCE STANDARD: meets the relevant requirements of Ga/t 1411.1-2017 police unmanned aerial vehicle systems part 1: Generic technical requirements and Ga/t 1411.3-2017 police unmanned aerial vehicle systems part 3: multi-rotor unmanned aerial vehicle systems, to provide the national security alarm system product Quality Supervision and Inspection Center (Beijing) , the Ministry of Public Security and Police Electronic Product Quality Inspection Center issued the test report.

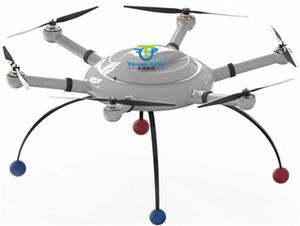

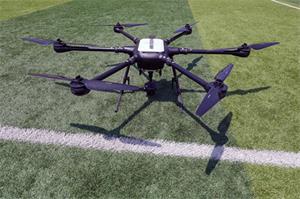

UV6 Standard version technical parameters: no-load: 9.32 kg wheelbase dimension: 1500 mm Max Flying Speed: 20 m/s working temperature:-20 ~ 60 °C working altitude: 5000 m payload: 5 Kg Endurance: 53 Min working radius: 10 km ambient humidity: 85% wind resistance class: 6

UV6 applied version technical parameters: no-load: 9.32 kg wheelbase dimension: 1500 mm Max Flying Speed: 20 m/s working temperature:-20 ~ 60 °C working altitude: 5000 m payload: 5Kg Endurance: 53 Min working radius: 10km ambient humidity: 85% wind resistance grade: grade 6

UV6 Reconnaissance Edition Technical Parameters: no-load: 9.32 kg wheelbase dimension: 1500 mm Max Flying Speed: 20 m/s working temperature:-20 ~ 60 °C working altitude: 5000 m payload: 5 Kg Endurance: 53 Min working radius: 10 km ambient humidity: 85% wind resistance class: 6

The UV6, technical parameters: no-load: 9.32 kg wheelbase size: 1500 mm Max flying speed: 20 m/s working temperature:-20 ~ 60 °C working altitude: 5000 m payload: 5Kg Endurance: 53 Min working radius: 10 km ambient humidity: 85% wind resistance class: 6

Colors and styles can be customized
