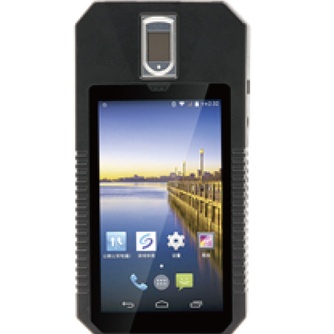

Portable identity card reader

Technical parameters RF TECHNOLOGY: meet General Technical Requirements for handheld ID card reader GA1153-2014 operating system: Android 4.4/5.1(matching according to actual requirements) operating frequency: 13.56 Mhz ± 7 Khz Read Card Distance: 0-2(cm) reading time: ≤1.5 s product interface: USB 2.0, bluetooth 4.0, wi-fi average trouble-free working time: > 5000h Product Power: 5400mAh Lithium Battery Product Size: 85 × 18 × 170mm (maximum 30MM) product weight: 0.453kg features: Main Frequency: Quad core, 1.5 Ghz Memory: 1 Gb Body Storage: 8 GB expansion card: 1 TF Card Slot, maximum 64G display: 5 inch capacitive screen, 1280 × 720 resolution (HD 720P) camera: Rear 5 Megapixel Wifi: 802.11 b/g/n, maximum speed 54 mbps; support for 802.11 I: KIP, Twep, Wep, WPA, WPA2 Bluetooth: BLE4.0, IEEE 802.15, rFID COMPATIBILITY: In line with the ISO/IEC 14443type A/b Agreement Standard ID card reader: Support Reading Resident ID card information function, built-in Resident ID card authentication security control module fingerprint instrument (Optional) : Semiconductor Fingerprint Head USB INTERFACE: 2.0HS, USB Micro, transmission, debugging, support OTG reader: built-in contactless reader can read ID card text, photos and fingerprint information; Fingerprint Identification Module Resolution 500dpi, combined with the built-in fingerprint contrast Algorithm, fingerprint identification: Semiconductor push-down Sensor, Standard Image Size: 256 * 360 Pixel, effective acquisition area: Over 14.25 × 19.3(M2) antenna energy output: Antenna surface electromagnetic field intensity (HMAX)≤7.5 a/m, the electromagnetic field intensity (HMIN)≥1.5 A/M RMS at the maximum card reading distance in the normal direction of the antenna surface

Colors and styles can be customized
