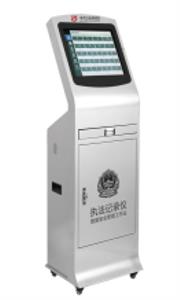

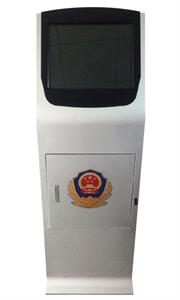

Video and audio collection station for law enforcement by single police

Technical Parameter 1. The Law Enforcement Recorder Information Collection Workstation is equipped with touch screen, 4g memory, 8t hard disk capacity, 20 law enforcement recorders can be connected, and it has 1 RJ45 interface and 1 USB interface. Using 220V power supply. 2. The display is a 19-inch touch screen with a screen resolution of 1280 × 10243. Functions: The collection workstation has the function of automatically uploading, automatically emptying the files in the law enforcement recorder, automatically recalibrating and charging the Connected Law Enforcement Recorder; It has the functions of marking important level of files, downloading photos from the collection station to the law enforcement recorder, protecting important data, logging, remote access, remote management, video format conversion, disk backup and information display, etc.  4. Implementation Standards: GB 16796-2009 and q/JS 001-2015.

Technical Parameters motherboard: MSI H170M PRO-VD SYSTEM SOLID STATE DRIVE: UV400120GCPU: Intel G4400 MEMORY: Kingston ddr421334g display: 19-inch touch screen HUB: usb-HUB- 28l-v1.3 Bin Number: 162025(optional) Atx Power Supply: Great Wall Gw-600zn hard disk bit: 83.5-inch hard disk bit encryption dog: Key3，CAPACITY: A minimum of 8 MINI USB devices and a maximum of 25 MINI USB devices can be accessed simultaneously. CONFIGURATION: Vertical appearance, 20 ports, 19-inch touch screen, 4 GB Ram, 120 GB ssd. 4t storage hard drive. Law Enforcement Logger Access Registration: When the law enforcement logger access law enforcement data acquisition equipment, law enforcement data acquisition equipment automatically access law enforcement instrument product serial number and alarm number, and check whether the product serial number and alarm number have been associated with the configuration, if not, the registration data can be collected by administrator Password Verification and Association configuration: The Video, audio, photo and log data of the registered law enforcement recorder can be collected automatically, the consistency between the data collected by law enforcement data acquisition equipment and the original data stored by law enforcement recorder is verified to ensure that the collected data can be browsed normally. Priority Collection: With Priority Collection Interface (default is No. 1 interface) , when this interface is connected to the law enforcement recorder, other interfaces which are collecting data are automatically suspended and priority collection of this interface data, after priority collection interface data collection is completed, automatic recovery of other interface acquisition. Data Browse: Browse the collection of audio and video, audio, photos and log data. Data retrieval: The collected video and audio look-up, audio, photos and logs and other data alarm number, police name, time, file type and key mark files and other one or more conditions are queried.Data Upload: The video and audio, audio, photos, logs or indexes of the collected law enforcement data collection equipment can be automatically or manually uploaded to the management server, and can set the automatic upload time. Law Enforcement Logger Data Wipe: The internal data of a law enforcement logger whose data collection has been completed will be wiped automatically or manually. Automatic data deletion: automatic deletion of data beyond the storage threshold (time or capacity) , the marked key file is not automatically deleted. The automatic deletion function is started when the threshold condition is arbitrarily satisfied. Time Correction: the Law Enforcement Recorder automatically time correction, time accurate to “Year, month, day, hour, minute, second”. Charging: it can recharge all the law enforcement recorders at the same time. Information and status display: the data acquisition interface displays the equipment information of each access law enforcement recorder, including the information of the alarm number, the name of the police officer, the unit of the police officer, the progress of data collection and the total storage capacity of the law enforcement data collection equipment, the remaining capacity, the serial number of the collection interface, etc. , displays the current interface state as free. User Rights Management: With a hierarchical management mechanism, and with offline management mechanism even if separated from the management server, law enforcement data acquisition equipment also set operating rights, an unauthorized user may not operate a law enforcement data acquisition device. Data Integrity: Law Enforcement Data acquisition equipment power failure, restart, crash or law enforcement recorder accidentally disconnected, Law Enforcement Recorder and law enforcement data acquisition equipment stored data and configuration information will not be lost, and in the next normal start-up and connection can automatically continue through data acquisition.Data Distribution: no secondary function, the previous version of the function can only do the text information, but also can not do the function of the picture. Log: The law enforcement data acquisition equipment automatically logs the operational status of the equipment and all operations, log contents include on/off, user login and operation, access/exit of law enforcement logger, data acquisition of law enforcement logger, failure occurrence and recovery time. Failure Alarm: when the law enforcement data acquisition equipment network interruption, memory overflow and other abnormal circumstances is, in 3 seconds at the same time the local alarm sound and alarm alert information. During the alarm can be removed by manual intervention audible alarm instructions, visible alarm instructions should be maintained until the failure can be completely restored before disappearing. Data Storage: Law Enforcement Data Acquisition Equipment of application and distributed system can classify and save data according to alarm number, time, file type and so on. BACKUP: The law enforcement data acquisition equipment used in the distributed system has the redundant backup function, when there is a disk failure or was pulled out, does not affect the normal writing of data, the stored data will not be lost.SOFTWARE UPGRADE: law enforcement data acquisition equipment running software can achieve local U Disk upgrade or remote upgrade through the management server. FILE FORMAT CONVERSION: Law Enforcement Data Collection Device will only retain the original file, and the original file will be uploaded to the server, to ensure data consistency. The screen display corresponds to the physical acquisition position: The interface number displayed by the law enforcement data acquisition device can correspond to the physical acquisition position one by one. Data acquisition rate: The average single-channel data acquisition rate of law enforcement data stimulation equipment should be ≥5.17 mb/s under the condition of full access capacity. Charging current: The maximum charging current of each interface of the law enforcement data acquisition equipment is ≥480mA under the condition of full load. Operating Noise: The operating noise of the law enforcement data acquisition equipment under normal operating conditions does not exceed 60 DB (a) . Timing error: the timing error between the law enforcement data acquisition equipment and the standard time is less than 3s/d

Colors and styles can be customized
