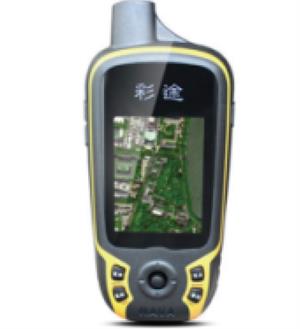

GPS locator
Technical Parameter Channel: 48 Parallel Channel (L 1, C/A) positioning accuracy: Single Machine Positioning 3-5 m, real time difference 1-3 m (SBAS) POSITIONING TIME: Hot Start & LT; 2 Second Cold Start & Lt; 35 SEC UPDATE RATE: 1 HZ ANTENNA: Omni Directional high sensitivity GPS ANTENNA WAYPOINT: 3000 waypoints/waypoints: 60/100 waypoints track: 50(5000/waypoint) memory expansion: Support Micro SD card interface: USB 2.0 coordinate system: Wgs84, Beijing 54, Xi'an 80, CGCS2000 and custom coordinate system... Area Measurement: real-time recording mode, route mode, save track mode sensors: three-axis Electronic Compass, Barometric altimeter, G-SENSOR, thermometer transmission protocol: NMEA0183 SIZE: 115 × 22 × 57(mm) shell material: Industrial Grade Material, operating temperature:-20 °C ~ 60 °C drop: 1.5 M (Cement Floor) type: TFT LCD SIZE: 2.2 Resolution: 240 × 320qvga color: 260,000 colors, color Screen Weight: 100G (without lithium battery) waterproof grade: IP67 storage temperature:-30 °C ~ 70 °C power type: Special Lithium battery, use time 20 hours; external power supply USB, car

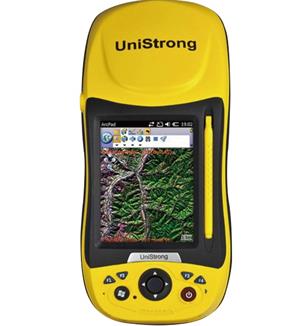

TECHNICAL PARAMETER OPERATING SYSTEM: Windows Mobile 6.5 OPERATING SYSTEM CPU: Main Frequency ≥833MHZRAM: ≥256MB MEMORY: ≥4GB satellite reception: Support GPS, Beidou, Glonass three system satellite reception, and Support Single Beidou System Positioning Channel number: ≥300 CHANNELS RECEIVE ANTENNA: built-in receiver can be used directly as base station, for the same type or the same type of products to provide differential signal source screen size: 3.7”high-brightness touch screen, clear display resolution in sunlight: 640 × 480 data interface: Mini USB interface, support for charging and Data Transmission Communication: Support for Bluetooth, Wifi, GPRS and WCDMA3G communication USB OTG: support for USB OTG function, can directly use U Disk for data transmission and storage expansion: Device with SD card expansion, maximum support not less than 32 g memory card expansion power supply: Battery Capacity ≥37 wh, using removable design, battery with power detection function, the battery can be recharged directly without the host computer. Service Time: The single battery is more than 14 hours. The device supports the hot plug of the battery, the battery can be replaced without closing the main engine temperature:-20 °C ~ 60 °C storage temperature:-30 °C ~ 70 °C dustproof waterproof: IP66 ANTI-DROP: 1.5 m natural fall to the ground
Colors and styles can be customized
