Police bulletproof helmets and face masks

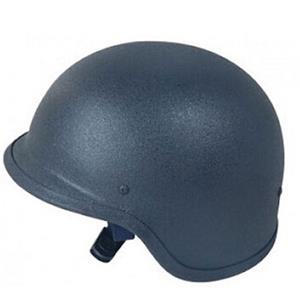

Technical parameters: The bulletproof helmet is a metal hard bulletproof helmet. The bulletproof helmet consists of the helmet shell (including the edge) and the suspension buffer system (including the cap collar, buffer layer, Chin strap, connector, etc.) . It is comfortable and stable to wear. 1. The outer appearance and marks of the helmet Shell meet the requirements. After the initial bond fastness test of the helmet shell, there is no bond opening phenomenon. After the bond fastness test of the helmet shell after heating, the length of the bond opening is 4.2 mm, which meets the requirements of Appendix C. 2. DIMENSIONS: L: 244 mm; B: 225 Mm; H: 171 mm. Meets the requirements of an l large helmet. Quality of bulletproof helmet: 2100G, accord with the requirement of Grade 2 metal bulletproof helmet. 4. Lateral rigidity of helmet shell: maximum deformation: 14.2 mm, residual deformation: 7.6 mm, strength of undermental belt device: undermental belt emergency release is more than 500 N, release or break when external force is more than 1000 N.Bullet-proof performance: the 1954 type 7.62 mm pistol and the 1951 type 7.62 mm pistol cartridge (lead core) are used to fire the bullet-proof helmet at a distance of 5 M, the height of the shell should be less than or equal to 25mm, and no parts of the suspension buffer system fall off after testing. A, top firing position-- Projectile Velocity 445m/s-- non-penetrating-4.2 mm Mark Height; B, front firing position-- Projectile Velocity 443m/s-- non-penetrating-5.6 mm Mark Height; C, right firing position-- Projectile Velocity 442m/s-non-penetrating-4.0 mm Mark Height; (D) left firing position-projectile velocity 443m/s-non-penetrating-6.2 mm Mark Height; (e) rear firing position-projectile velocity 448m/s-non-penetrating-4.8 mm Mark Height; (6) ambient temperature-25 °C ~ + 55 °C, there were no cracks, blistering and delamination on the surface of helmet shell. No parts of suspension buffer system fall off after shooting test. The test results of the items inspected meet the relevant requirements of the class L 2 metal bullet-proof helmets in Ga 293-2012.7. Water Resistance: No cracks, blistering and delamination on the surface of the helmet shell after being immersed in water for 24 hours at room temperature. In the case of 2 effective hits, the bullet-proof helmet blocks the warhead, the height of the shell mark of the helmet shell at the first impact point is less than 25mm, and no parts of the suspension buffer system fall off after shooting. A, top firing position-- Projectile Velocity 449m/s-- non-penetrating-bullet mark height 4.6 mmb, front firing position-bullet Velocity 447m/s-- non-penetrating-bullet Mark Height/mm ★ inspection report issued by the Quality Supervision and Inspection Center for Special Police Equipment of the Ministry of Public Security in 2016, implementation Standard: Ga 293-2012 police bulletproof helmets and face masks. Test number: No. 1650037 provides 1.5 million product quality and liability insurance for each bullet-proof helmet. The insurance period is eight years.

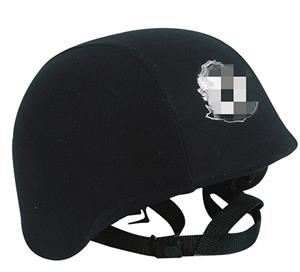

Technical Parameters: 1, Material: non-metal, aRAMID MATERIAL 2, protection level: Class II 3, protection weapon type: 1954 type 7.62 mm Handgun Cartridge (lead core)4, bullet speed: 420 ~ 450 MS5, protection area: 0.125 M26, weight: 1.857, service environment temperature:-45 °C ~ 55 °C 8, test basis: Ga 293-2012 police bulletproof helmet and mask 9, Test Report: Provide test report issued by test and test center of China South Industries Group in 2015 and quality supervision and test center of special products of China Ordnance Equipment, no. 115 provides the inspection report issued by the Quality Supervision and Inspection Center for Special Police Equipment of the Ministry of Public Security in 2013, testing number: Police Inspection (Commission) No. 1350234★ each bullet-proof Helmet provides 1.5 million product quality and liability insurance. The insurance period is five years.

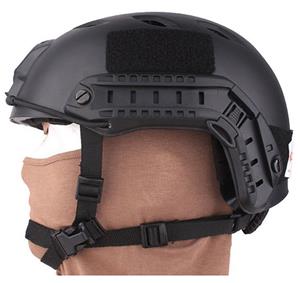

Technical parameters: Tactical bullet-proof Helmet by the helmet Shell and suspension buffer system composition 1. Helmet Shell material: 9.0 mm aramid woven Fabric 2. Helmet Mass: 1500 G3. Dimensions (mm) : L: 250, B; 197, H: 1174. At Room temperature: lateral rigidity: maximum deformation 3.78 mm, residual deformation 1.21 mm 5. Flame retardancy: 1.0 S at room temperature, high temperature (55 °C ± 2 °C, constant temperature 3H) , low temperature (- 25 °C ± 2 °C, constant temperature 3H) , immersion (0.5 m deep water, immersion 24h) , warhead firing angle, warhead velocity (m/s) : 437 -- 450, bullet hit: the height of the bullet mark of the unpenetrated helmet Shell is less than 25.0 mm ★ provide the test report issued by the test and test center of the China South Industries Group and the Quality Supervision and test center of China’s special products for weapons and equipment in 2016, pERFORMANCE STANDARD: GA293 -- 2012 police flak helmet and mask test number: military test [2016] no. 1056 provides 1.5 million product quality and liability insurance per flak helmet. The insurance period is eight years.

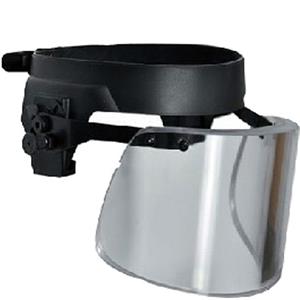

Technical parameters: the product consists of transparent panel and connecting locking device. The transparent panel is made of 1.25 mm PE, 12.0 mm acrylic plate and 8.0 MMPC at one time starting from the face of projectile. 1. Height of transparent panel: h 137 mm, arc length L350 MM 2. Weight: 1476 G3. Transmittance: 83.6% 4. FLAME-RETARDANT PERFORMANCE: Panel reburning time 2 s, locking device reburning time 2 s 5. Ballistic Performance: No Penetration, no splash, no separation 6. Bullet-proof Mask Protection Class: 2(547.62 mm lead bullet protection) features: Mask high clarity, bullet-proof effect is good, it can be used to provide the test report issued by the test and test laboratory of China South Industries Group and the quality supervision and test center of China’s special weapons and equipment products, test Standard: GA293-2012(police bullet-proof helmets and face masks) test number: military inspection [2016] no. 1057 provides 1.5 million product quality and liability insurance for each bullet-proof face mask. The insurance period is eight years。
Colors and styles can be customized
